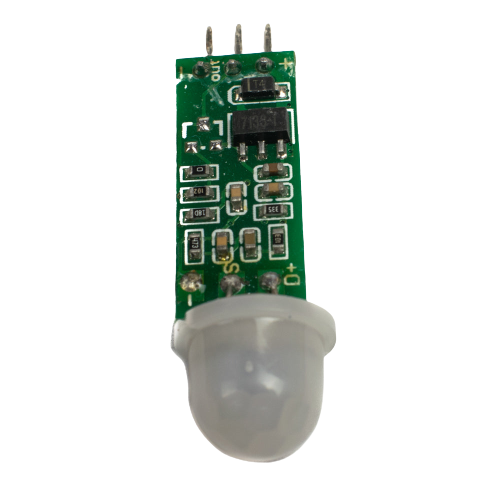

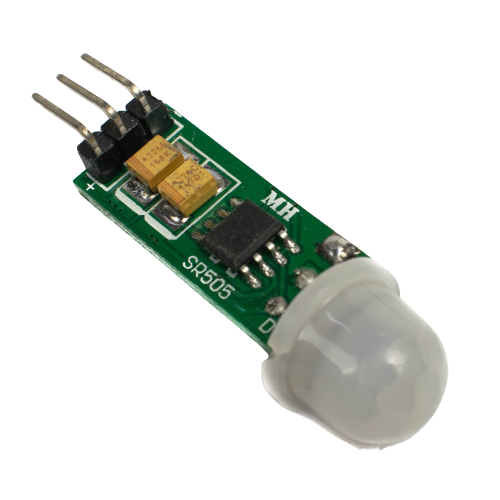

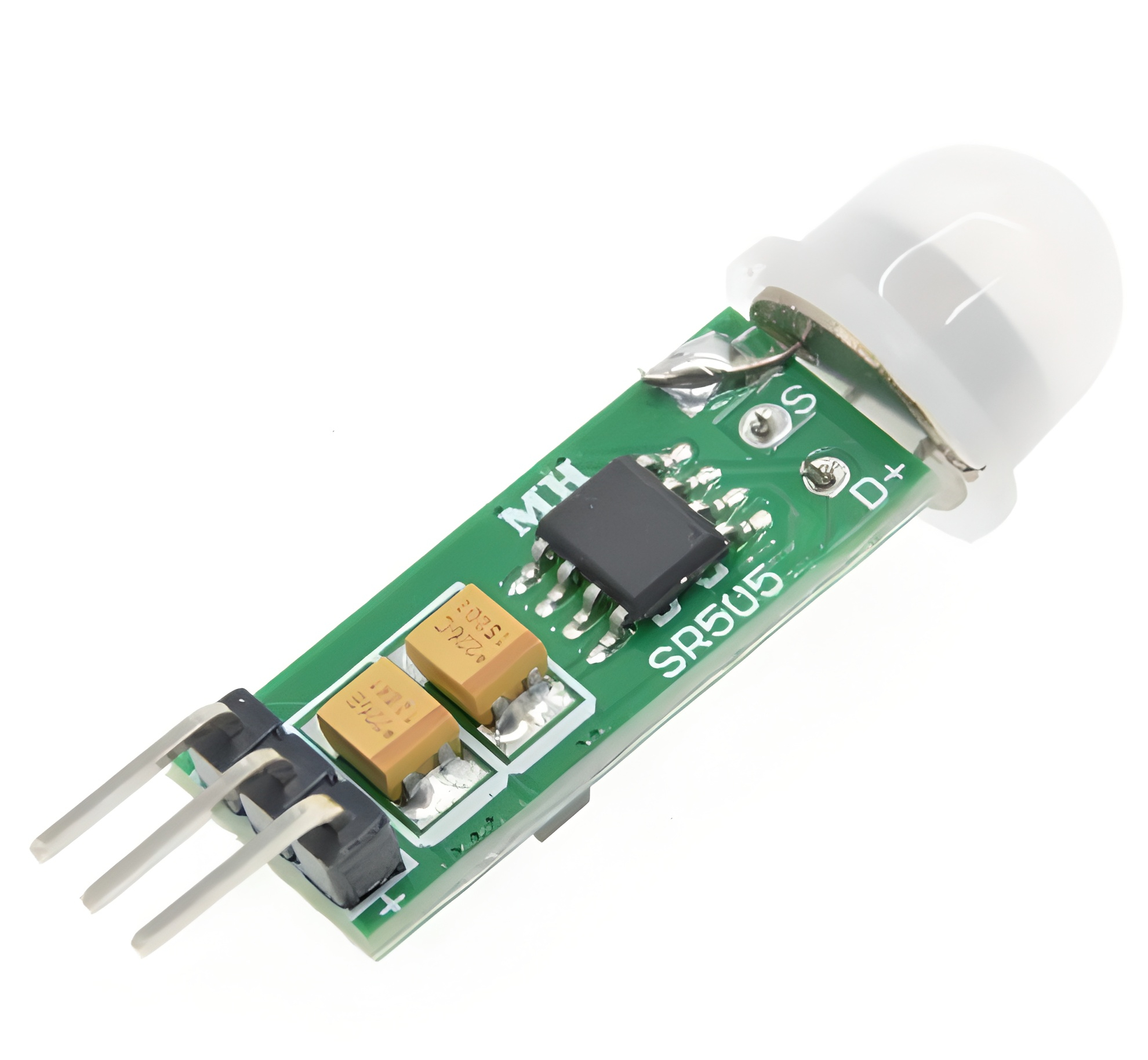

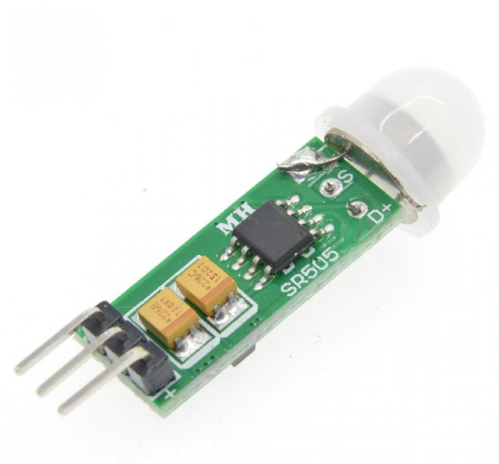

HC-SR505 PIR Sensor Mini
The HC-SR505 is a miniature PIR (Passive Infrared) sensor module designed for motion detection applications. Despite its compact size, it offers reliable and efficient motion detection capabilities. This sensor is commonly used in various projects, including security systems, lighting control, and automation.
Non-returnable
SKU - R0379 F-2
Rs.90.00
In stock:
3
Choose Quantity:
Share:
Product Details
Key Features:-
- Low-power consumption
- Output level: High 3.3V / Low 0V
- Trigger: repeatable trigger (default)
- Automatic induction: to enter the sensing range of the output is high, people leave the sensor range automatically delay off high, output low. Ultra-small size.
- Repeatable trigger: the sensor output high, the delay period, if there is human activity in its sensing range, the output will remain high until people leave after the high variable delay Low (automatically extended sensor module detects the human body after every activity a delay period, and the last time an event is the starting point of the delay time).
- Wide operating voltage range: the default operating voltage DC4.5V-20V.
- Micropower: quiescent current <50 microamps, especially for battery-powered automatic control products.
- Output high signal: easy docking and all kinds of circuits.
Specifications:
- Model: HC-SR505
- Operating Voltage Range: DC4.5-20V
- Average Current Consumption (mA): 0.06
- Distance Measuring Range: 3 meters
- Dimensions (mm) LxWxH: 10 x 23 x 5
- Weight (gm): 10
- Delay time: Default 8S + -30% (can be customized)
- Working Temperature Range: -20°C ~ 80°C
- Sensor Lens Diameter: 10mm
- Induction angle: <100-degree cone angle
