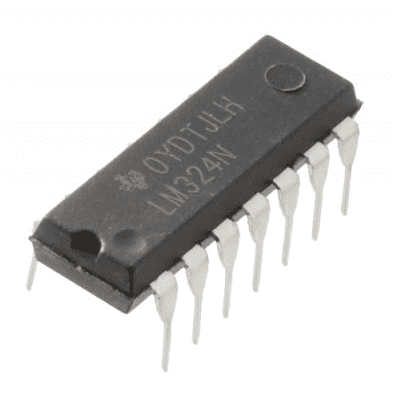

LM324 Operational Amplifier IC

Quad Op-Amp: The LM324 contains four separate op-amps, labeled as A, B, C, and D. Each op-amp can be used independently for various amplification and signal processing tasks.

General-Purpose Op-Amp: The LM324 is a general-purpose op-amp, suitable for a wide range of applications, including amplification, filtering, voltage following, and comparator functions.

Single-Supply Operation: The LM324 is designed to operate from a single positive power supply voltage (typically +3V to +32V). This feature makes it compatible with many battery-powered and single-supply applications.

Low Power Consumption: The LM324 has low power consumption, making it suitable for battery-powered devices and applications where energy efficiency is crucial.

Input and Output Ranges: The input voltage range for the LM324 typically includes the entire range between the supply voltages. The output voltage can also swing close to the supply voltages.

Common-Mode Input Range: The common-mode input voltage range, which is the range of input voltages where the op-amp operates within its specifications, typically includes the ground (0V) reference.

Differential Input: Each op-amp within the LM324 has two input terminals, an inverting (-) and a non-inverting (+) input. The voltage difference between these terminals (differential input) determines the op-amp's response.

Open-Loop and Closed-Loop Operation: The LM324 can be used in open-loop configurations for simple amplification or in closed-loop configurations, such as inverting and non-inverting amplifiers, to achieve specific gain and filtering functions.

Applications: The LM324 is used in a wide range of applications, including audio amplifiers, signal conditioning, voltage followers, active filters, and comparator circuits.
