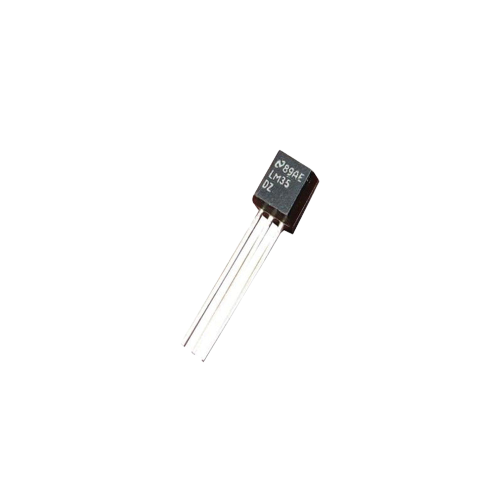

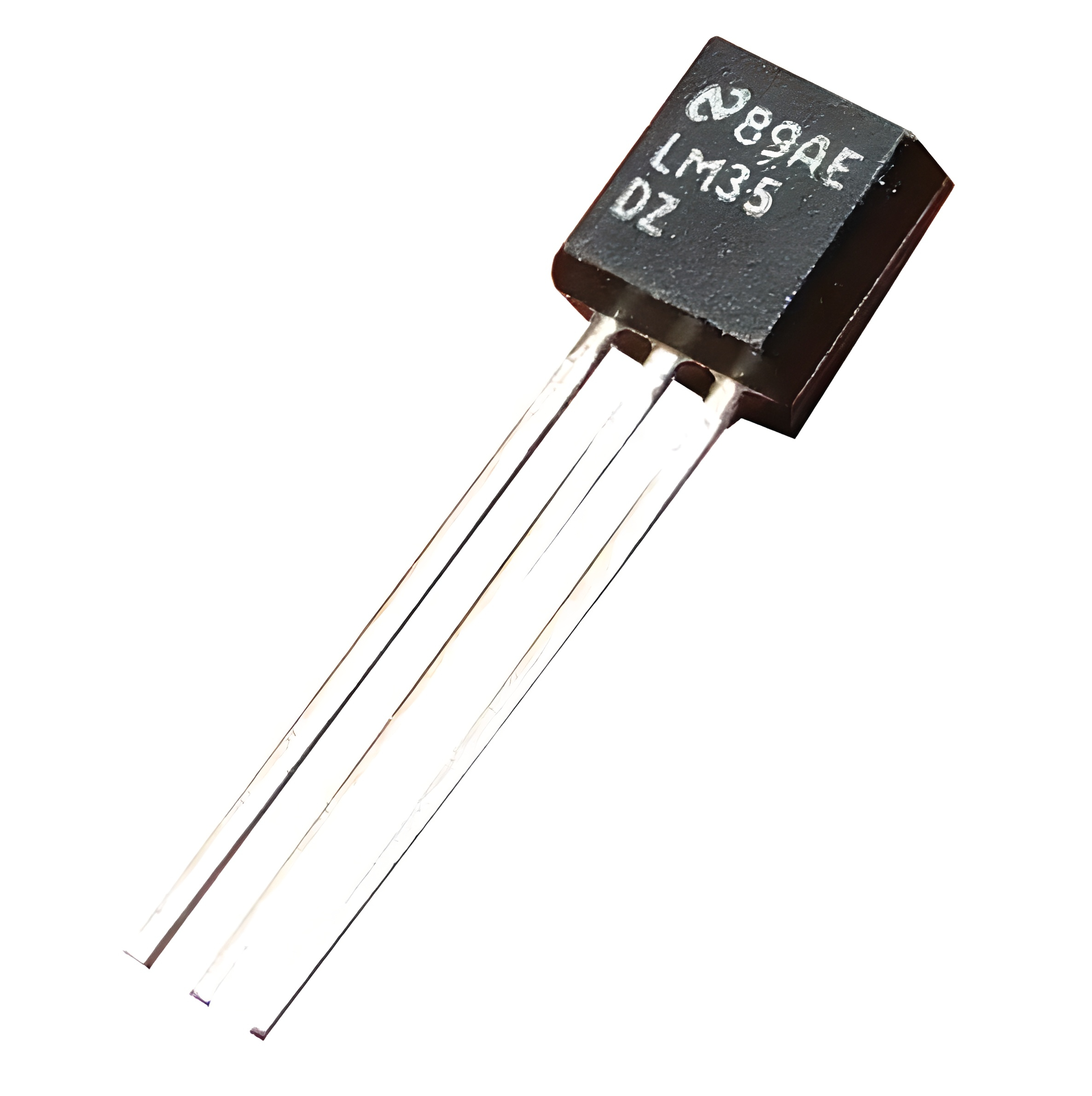

LM35 Temperature Sensor
The LM35 Temperature Sensor is a precision IC sensor providing accurate temperature measurements. Operating as an analog output sensor, it offers a linear output proportional to Celsius temperature, making it ideal for various temperature sensing applications in industries like HVAC, automotive, and weather monitoring, ensuring precise and dependable temperature measurements.
Non-returnable
SKU - R0440 G-3
Rs.85.00
In stock:
32
Choose Quantity:
Share:
Product Details
The LM335 series are precision, easily-calibrated, integrated circuit temperature sensors. Operating as a 2-terminal zener-diode, the LM335 has a breakdown voltage directly proportional to absolute temperature at +10 mV/˚K. With less than 1Ω dynamic impedance the device operates over a current range of 400 µA to 5 mA with virtually no change in performance. When calibrated at 25˚C the LM135 has typically less than 1˚C error over a 100˚C temperature range. Unlike other sensors the LM135 has a linear output.
Specifications-
1.Calibrated-Integrated Temperature Sensor
2. Temperature Range from -40°C to +100°C
3. 1°C Initial Accuracy
4. Operates from 400µA to 5mA
5. Low Dynamic Impedance
6. Temperature sensitive projects
